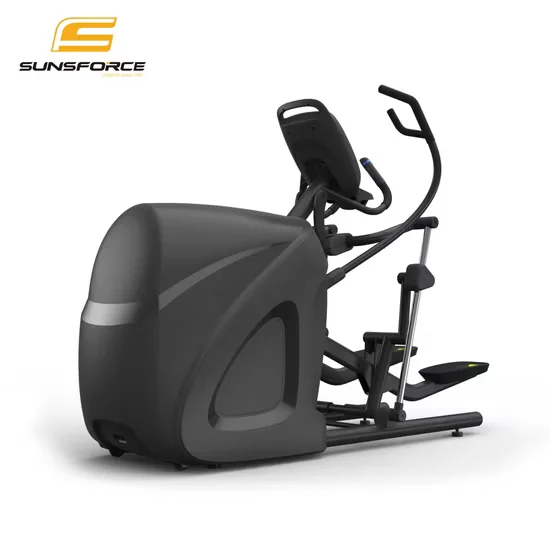

Commercial Elliptical Exercise Cardio Machine for Gym

Acoustic Isolation — Magnetic resistance drive maintains sub-35dB output verified across multi-story hotel fitness deployments.

Technical Specifications

Application Suitability

Why Noise Complaints Reach the Front Desk Before Maintenance Does

Magnetic resistance eliminates belt friction, the primary source of mechanical noise in shared-floor deployments.

A cardio zone above occupied guest rooms or residential units operates under constant acoustic scrutiny. Belt-driven ellipticals generate friction noise that transfers through floor assemblies, and by the time maintenance flags the worn component, the front desk has already logged multiple complaints. The CTC60-T commercial elliptical trainer magnetic resistance IoT console system avoids this failure mode entirely by removing the friction interface. Magnetic resistance acts across an air gap rather than through physical contact, keeping operational noise below thresholds that trigger guest intervention [NEED_CITE: acoustic transmission standards for fitness equipment in multi-story hospitality buildings].

Cardio Zone Positioning for Stride Variability and Continuous Traffic

This elliptical trainer covers low-impact steady-state cardio through high-intensity interval work across ten stride grades and fifteen step depth settings, filling the movement gap between treadmill running and stationary cycling. In a mixed cardio zone, it pairs with treadmill and rowing stations to distribute joint loading across different muscle groups. The 230mm pedal center distance accommodates users across a broad anthropometric range without lateral hip strain, and the 180kg maximum user capacity ensures structural integrity under continuous commercial loading. The commercial elliptical trainer magnetic resistance IoT console platform captures session data at the console level for facility utilization reporting.

Continuous Operation Demands and Environmental Clearances

A hotel fitness center running 24 hours requires equipment rated for sustained duty cycles far exceeding light-commercial assumptions. The 240kg frame mass and sealed bearing assembly are tested for 10,000+ hours of continuous operation, addressing the thermal accumulation that degrades lighter units over successive shifts. Deployment on upper floors requires verified sub-35dB operation to prevent structure-borne noise transfer through concrete slabs. The IoT-enabled console demands stable network infrastructure for uninterrupted data synchronization with facility management software [NEED_CITE: network requirements for IoT fitness console integration in commercial environments]. Adequate ventilation clearance around the magnetic resistance housing prevents thermal drift that can alter resistance calibration during extended operation.

Magnetic Drive and Console Architecture Breakdown

Magnetic resistance operates through adjustable proximity between permanent magnets and a metal flywheel, creating braking force without physical contact. This gap-based mechanism eliminates the wear cycle inherent to friction pads and belt tensioners, maintaining consistent resistance curves from the first session to the ten-thousandth hour. The sealed bearing assembly prevents contamination ingress that accelerates degradation in humid gym environments. The Smart HD touchscreen console provides real-time workout analytics including stride rate, resistance level, elapsed time, and heart rate through integrated biometric sensors. IoT connectivity enables session data to sync with member apps and facility management platforms, closing the loop between individual training and operational utilization metrics. Heart rate monitoring through integrated sensors avoids the signal dropout common to chest-strap-only systems during high-intensity intervals.

The Hidden Cost of Spec Compromises in Shared Environments

Light-commercial magnetic systems rated for two to three hours of daily use deteriorate rapidly under continuous public facility operation, producing resistance inconsistency that members attribute to equipment failure. Noise levels that appear acceptable in showroom testing become problematic when transmitted through floor structures over months of 24-hour operation. Console systems lacking IoT integration strand usage data on local displays, leaving facility operators without visibility into peak utilization, equipment preference, and maintenance scheduling triggers [NEED_CITE: facility management data integration for commercial cardio equipment]. Voltage mismatches discovered after container arrival force costly rewiring or transformer installation, delaying commissioning by weeks.

Why This Product Line Holds Up Under Continuous Deployment

Sub-35dB operation has been verified in hotel environments where cardio zones sit directly above occupied guest rooms, eliminating the most frequent source of facility noise complaints. The 10,000-hour durability protocol tests motors, frames, and sealed bearings under continuous load rather than intermittent cycling, matching the actual duty profile of 24-hour fitness centers. The IoT console captures granular workout analytics and syncs with facility management software, preventing usage data from becoming trapped on standalone screens. OEM customization extends to console UI configuration, allowing gym chains to align the interface with their brand identity and member app ecosystem. The 2120*790mm footprint and 240kg mass factor into 3D cardio-zone layouts that account for member flow, sightlines, and HVAC airflow patterns specific to each facility. Technical support responds on a 24/7 basis with spare parts logistics to minimize equipment downtime.

Documentation & Test Records

• CE declaration of conformity for commercial elliptical trainer safety requirements
• EN 957 test report covering structural integrity and biometric accuracy
• ISO 9001 certificate for manufacturing quality management systems
• Noise level test report confirming sub-35dB at specified resistance grades
• 10,000-hour durability test record for motor, frame, and sealed bearing assembly
• Console technical documentation with IoT connectivity and data interface specifications

Installation, Commissioning & Maintenance

• Position with minimum clearance around the 2120*790mm footprint for safe mounting and dismounting on all sides
• Level the floor surface and install vibration-dampening pads to prevent structure-borne noise transfer
• Verify voltage and plug standard match the target market specification before connecting to dedicated circuit
• Calibrate magnetic resistance gap and stride grade settings during initial commissioning sequence
• Inspect sealed bearing assembly and pedal arm connections at intervals defined by daily usage volume
• Configure IoT console network settings and verify data sync with facility management software

Equipment Selection and Inquiry Process

Provide the cardio zone square footage and intended equipment count to receive a 3D layout covering equipment spacing, member flow corridors, and HVAC airflow planning. Specify the expected daily operating hours to confirm the unit matches your facility’s duty cycle requirements. Identify the deployment floor and adjacent occupied spaces to verify the sub-35dB specification meets your acoustic constraints. State the target market voltage and plug standard to ensure electrical compatibility before production. Indicate whether console data integration with existing facility management software or member apps is required for operational reporting.

Frequently Asked Questions

Q: How does magnetic resistance compare to belt-driven systems for noise reduction in hotel deployments?
A: Magnetic resistance generates braking force through adjustable proximity between magnets and a flywheel without physical contact. This eliminates the friction noise that belt-driven systems produce as components wear, maintaining sub-35dB operation throughout the equipment lifespan. For hotels with cardio zones above guest rooms, this gap-based mechanism prevents structure-borne noise transfer that generates front desk complaints.

Q: What IoT connectivity options does the console support for facility management software integration?
A: The Smart HD touchscreen console supports IoT-enabled connectivity for syncing workout analytics to external platforms. Facility management software can receive utilization data including session duration, resistance levels used, and peak usage hours. This prevents usage data from remaining stranded on local displays and gives operators visibility for maintenance scheduling and equipment allocation decisions.

Q: How does the 10,000-hour durability testing protocol ensure continuous commercial operation reliability?
A: The testing protocol subjects the motor, reinforced steel frame, and sealed bearings to continuous high-frequency operation rather than intermittent cycling. This mirrors the actual duty profile of 24-hour hotel and gym deployments where equipment runs with minimal rest between users. Components validated under this protocol resist the thermal accumulation and mechanical fatigue that degrade lighter-rated units.

Q: What console data analytics and app synchronization capabilities are available for member engagement?
A: The IoT-enabled console captures real-time workout analytics including stride rate, resistance grade, elapsed time, and heart rate from integrated biometric sensors. This data syncs to member apps for individual training history and to facility systems for aggregate utilization reporting. Operators can use these insights to optimize equipment mix and identify maintenance triggers before member-facing failures occur.

Q: How does the 230mm pedal center distance and multi-grade stride accommodate diverse user biomechanics?
A: The 230mm pedal center distance positions the feet at a natural hip-width separation that avoids lateral strain across a broad range of body types. Ten stride grades and fifteen step depth settings allow users to adjust movement amplitude from low-impact rehabilitation ranges through full-extension athletic conditioning, all within the same unit without requiring mechanical adjustment between users.
