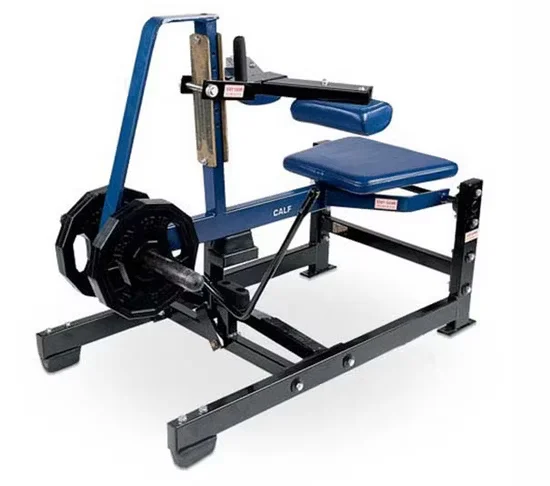

![2019 Hammer Strength Seated Calf Raise Commercial Gym Equipment [WARN] draft identifier mismatch](https://bicksport.com/wp-content/uploads/2026/08/2019-hammer-strength-seated-calf-raise-commercial-gym-equipment-warn-draft-identifier-mismatch-0cdfd7.webp)
Zero-Electric Manual Resistance — Purely mechanical loading eliminates motor failure risk and guarantees uninterrupted availability for high-frequency strength training zones.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | OS — H5032 |
| Product Type | Seated Calf Raise |
| Resistance Type | Manual (plate-loaded) |
| Max User Weight | 180 kg |
| Frame Material | Commercial-grade steel |
| Product Dimensions | 1230 × 730 × 1004 mm |
| Net Weight | 65 kg |
| Foldable | Yes |
| Main Frame Color | Available per customer requirements |
| Cushion Color | Available per customer requirements |
| Certification | ISO 9001, CE |
| Age Group | Adult |
| Gender | Unisex |
| OEM/ODM | Acceptable |
Application Suitability
| Deployment Scenario | Typical Use |
|---|---|
| Professional gym and club strength zone | Isolated calf development within free-weight and plate-loaded machine circuits |
| Community fitness center | Accessible lower-leg training for diverse membership demographics |
| Corporate wellness room | Compact strength station complementing cardio and functional areas |
| High-end residential home gym | Space-efficient plate-loaded unit with folding storage capability |
| Sports performance training center | Targeted calf strengthening for athletes requiring ankle stability and explosive power |
Why Plate-Loaded Calf Machines Outlast Motorized Alternatives in 24/7 Gyms
Manual resistance systems carry zero electrical failure points, making the commercial seated calf raise machine one of the most reliable stations on any gym floor.
Strength equipment with integrated motors or electronic resistance controls introduces maintenance variables that compound under continuous public use. A burned-out actuator on a selectorized stack can sideline a station for days while parts ship. Plate-loaded designs strip that complexity away entirely — the resistance is whatever the user loads, and the mechanical path from weight to movement involves nothing but steel, pivots, and bearings. [NEED_CITE: maintenance frequency comparison plate-loaded vs selectorized strength equipment] I have seen facilities cycle through multiple motorized leg units over the lifespan of a single plate-loaded frame.
Positioning the Seated Calf Raise Within a Strength Training Floor
Targeted Lower-Leg Isolation in a Multi-Station Layout
The seated calf raise occupies a specific niche: isolating the soleus muscle under a bent-knee position that standing calf machines cannot replicate. In a strength zone, it pairs naturally with standing calf equipment, leg presses, and squat racks to deliver complete lower-leg coverage. The compact 1230 × 730 mm footprint allows placement against walls or at the end of a machine row without disrupting member traffic flow. Users from recreational lifters to competitive athletes fall within the 180 kg capacity range. The commercial seated calf raise machine serves anyone seeking controlled, repeatable calf loading without balance demands.
Deployment Density and Environmental Tolerance
Because this unit requires no electrical connection, deployment is unrestricted by outlet proximity or circuit load calculations. Facilities can position it on any level — including upper floors and mezzanines — without noise transmission concerns. [NEED_CITE: structural vibration transfer from plate-loaded equipment to adjacent floors] The absence of a motor also removes heat generation from the equation, reducing HVAC load in densely packed strength rooms. Daily throughput is limited only by bearing wear on the pivot assembly, and sealed bearings on commercial-grade units sustain high-frequency use across extended service intervals. Ground leveling and a rubber mat beneath the frame keep the unit stable under heavy asymmetric loading.
Mechanical Advantage and Load Transfer in Plate-Loaded Calf Systems
The seated calf raise operates on a lever-arm principle where the user’s knee position anchors the movement and the ball of the foot drives the resistance platform. The 65 kg frame mass provides a stable base, but the mechanical advantage ratio between the load horn and the foot platform determines how heavy the resistance actually feels to the user. Steel pivot points with sealed bearings reduce friction losses that cheaper bushings introduce over time. The manual resistance path means the loading curve stays consistent — there is no belt slip, cable stretch, or pneumatic seal degradation altering the feel between repetitions. The foldable mechanism introduces a hinge point that must maintain rigidity when deployed; verifying the lock pin engagement and hinge weld integrity during routine inspection prevents drift during loaded sets.
What Spec Compromises Cost in Plate-Loaded Strength Equipment
Facilities that source strength machines based on price alone often discover the consequences months into deployment. Thin-gauge steel frames deflect under loaded sets, creating lateral play that users feel as instability. Bushings substituted for sealed bearings wear unevenly, generating grinding sensations that drive members to skip the station entirely. [NEED_CITE: bearing failure modes in high-frequency commercial strength equipment] Foldable designs with inadequate lock mechanisms develop wobble, turning a space-saving feature into a safety concern. I have watched gym operators pull entire rows of underbuilt machines off the floor within a year because the pivot points simply could not handle the repetition volume.
Why This Product Line Earns Floor Space
Every unit ships from a vertically integrated facility where the frame welding, CNC machining, assembly, and QC testing happen under one roof. The ISO 9001 and CE certifications are backed by EN 957 test reports covering structural integrity and safety. OEM customization extends to frame color, cushion upholstery, and branding — matching a facility’s visual identity without third-party finishing. The foldable design lets operators reclaim floor space during group sessions or off-peak reconfigurations. Our team provides 3D layout planning that accounts for this machine’s footprint, adjacent equipment clearances, and member flow through the strength zone. Technical support is available around the clock for commissioning questions and spare parts sourcing.
Documentation & Test Records
- CE declaration of conformity covering mechanical safety requirements
- EN 957 test report validating structural and functional performance
- ISO 9001 quality management certificate for manufacturing processes
- Frame load test and weld inspection records
- Pivot bearing durability and cycle-life documentation
- OEM customization scope sheet with color and finish options
Installation, Commissioning & Maintenance
- Maintain minimum 600 mm clearance on all sides for safe loading and unloading of weight plates
- Position on a level surface with a rubber equipment mat to dampen plate contact noise
- No electrical circuit required — verify foldable lock pin engagement before first loaded use
- Inspect pivot bearings and hinge welds quarterly under full-load conditions
- Wipe down steel frame and cushion surfaces daily to prevent sweat-induced corrosion
- Confirm all fastener torque values after the first 500 use cycles post-installation
Request a Deployment Assessment
Provide your strength zone dimensions and equipment list to receive a 3D layout incorporating this machine’s footprint and member flow patterns. Specify the expected daily user volume so we can match bearing specifications to your duty cycle. Indicate whether OEM frame and cushion colors need to align with existing facility branding. State your target market for shipping documentation alignment. Share any data integration requirements if this unit will connect to a facility management system through third-party sensors.
Frequently Asked Questions
Q: How does manual plate-loaded resistance compare to selectorized systems in long-term maintenance cost?
A: Plate-loaded machines eliminate cables, pulleys, weight stack guide rods, and selector pins — all components that wear and require scheduled replacement on selectorized units. Maintenance reduces to periodic bearing inspection and fastener torque checks. Facilities running high-volume strength floors report noticeably lower downtime and parts expenditure on plate-loaded stations over multi-year deployment cycles.
Q: What structural standards govern commercial seated calf raise equipment?
A: The ISO 9001 certification covers manufacturing process controls, while CE marking demonstrates conformity with European machinery safety directives. EN 957 testing validates static load capacity, structural fatigue resistance, and entrapment prevention. Buyers should request the specific EN 957 test report alongside the declaration of conformity to verify the unit has been evaluated under commercial load cycles.
Q: What OEM customization is available for frame color and cushion materials?
A: Frame powder-coat colors and cushion upholstery materials are configurable to match facility branding. Minimum order quantities apply and vary by customization scope — confirm specific thresholds during the quotation stage. Lead times extend slightly for non-standard color matches requiring custom powder formulations or upholstery sourcing.
Q: How does the foldable design affect deployment flexibility in compact strength zones?
A: The folding mechanism allows the unit to be stored vertically, recovering floor space for group classes or temporary layout changes. The lock pin must be verified before each use session. Facilities benefit from mapping fold and deploy zones during initial 3D layout planning to ensure adequate clearance when the unit transitions between orientations.
Q: What layout considerations matter when placing this machine among other strength stations?
A: Position the seated calf raise where users can load plates without blocking adjacent equipment traffic. Allow clearance behind the unit for plate storage racks. In high-density strength zones, place it near other lower-leg machines to create a logical training flow and reduce member crossover through pressing and squat areas.
